All aluminum, or plastic components for oxidation resistance.
Extruded aluminum slat profiles.
Simple manual operators: crank, spring assist.
Push button electrical motor operators.
Extruded aluminum guide rails

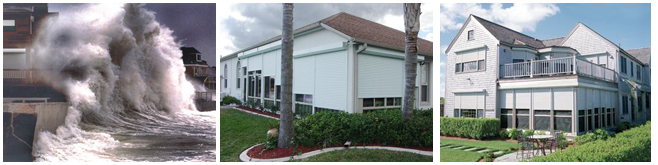

Protects window and door openings from driving wind and rain damage.
Provide a physical barrier to deter burglars.
Sun Protection. Eliminates fade damage to fabrics caused by extensive sun exposure.
Reduced energy costs.
100% Privacy when closed
Storm and Hurricane protection.
Projectile protection from airborne particles caused by high winds. | |
| Product characteristic |
|

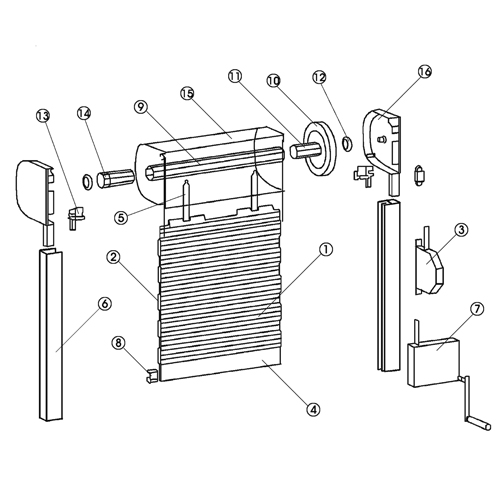

(1)slat (2)PVC side clip (3)tape coiler (4)bottom slat (5)spring fasteners (6)rail
(7)handle crank (8)bottom slat clip (09)Axle (10)tape pulley (11)Axle insert
(12)Bearing (13)PVC guide insert (14)Tubular motor (15)box (16)Box end
|
| Product Mix |
|
|
Item NO |
Name |
Thickness |
Weight |
Maximum width |
Maximum height |
Maximum area |
Quantity of per meter |
Surface Treating |
|
SLLP-55F |
55mm hurricane slat |
14mm |
10.3kg/m2 |
4.0m |
3.5m |
12.0m2 |
18pieces |
Power Coating |
|
SLLP-56F |
56mm hurricane slat |
14.5mm |
13.3kg/m2 |
6.0m |
4.0m |
22.0m2 |
18pieces |
Power Coating |
|
SLLP-120F |
120mm hurricane slat |
25.54mm |
12.0kg/m2 |
9.0m |
7.8m |
65.0m2 |
8pieces |
Power Coating |
|
| Other color |
|
Color: White,Beige,Grey (Other color can be made upon customer is request.)
|
|
Update:2008/2/2 11:27:20 |
