Roller Shutters Series : Aluminium Roller Shutters Series |
|
|
|
|
，Description of products |
|
|
|
The doors are designed with individual style,beautiful appearance and elegant pattern.
Surface treating is powder coating,could waterproofing,anti-sunlight,anti-rust,anti-lacerated.
With rigid structure,theftproofing,noiseproofing,warm kepping.
Advanced opening ways: manual, switch and remote-controlled with auto-lock function;
All kinds of style and colors are adjustable to user¨s requirement.
|
| Product characteristic |
|

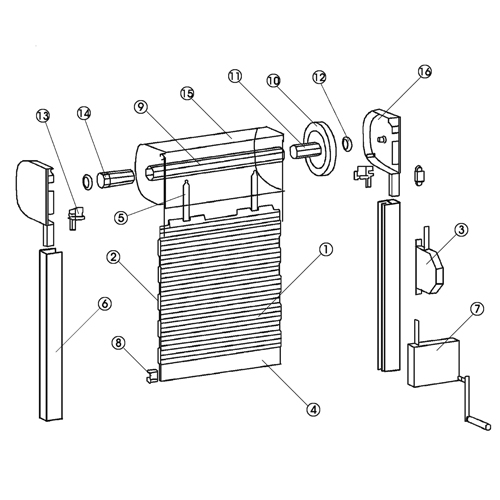

(1)slat (2)PVC side clip (3)tape coiler (4)bottom slat (5)spring fasteners (6)rail
(7)handle crank (8)bottom slat clip (09)Axle (10)tape pulley (11)Axle insert (12)Bearing
(13)PVC guide insert (14)Tubular motor (15)box (16)Box end
|
| Product Mix |
|
|
Item NO |
Name |
Thickness |
Weight |
Maximum width |
Maximum height |
Maximum area |
Quantity of per meter |
Surface Treating |
|
SLLP-32S |
32mm slat |
8.3mm |
6.1kg/m2 |
2.5m |
3.0m |
7m2 |
31pieces |
Power Coating |
|
SLLP-37S |
37mm slat |
8.0mm |
5.5kg/m2 |
3.0m |
3.5m |
9m2 |
27pieces |
Power Coating |
|
SLLP-42S |
42mm slat |
10.0mm |
5.7kg/m2 |
3.0m |
3.6m |
9.0m2 |
24pieces |
Power Coating |
|
SLLP-55F |
55mm slat |
14mm |
9.7kg/m2 |
4.0m |
3.5m |
12.0m2 |
18pieces |
Power Coating |
|
| Other color |
|
Color: White,Beige,Grey (Other color can be made upon customer is request.)
|
|
