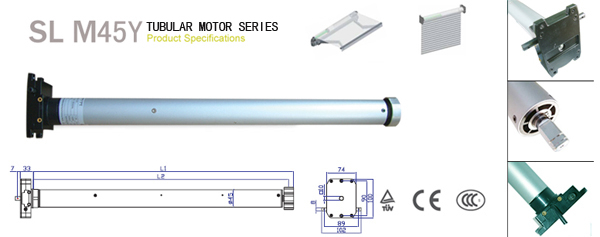

Tubular Motor Series : Tubular Motor (SL M45Y) |
|
|
|
|
，Description of products |
|
|
|
With the advanced design (electronic, mechanicand control mixed together), it has characters of conpact structure, big torque, sensitive limited switch and accuracy. This type of motor can be used in curtain, metal rolling door, and windows etc. Which the maximum lift capacity is less than 80kg. (Note: The model with the appendix "Y" means it has the manual function in case of the power off. ) |
| Product Mix |
|
| Model SLM45 |
20 |
30 |
30Y |
40 |
40Y |
50 |
50Y |
| Voltage |
220/230v
50/60HZ |
220/230v
50/60HZ |
220/230v
50/60HZ |
220/230v
50/60HZ |
220/230v
50/60HZ |
220/230v
50/60HZ |
220/230v
50/60HZ |
| Power ( w) |
160/180 |
240/260 |
240/260 |
240/280 |
240/280 |
240/280 |
240/280 |
| Nominalspeed |
12rpm |
12rpm |
12rpm |
12rpm |
12rpm |
12rpm |
6rpm |
| Nomial torque |
20Nm |
30Nm |
30Nm |
40Nm |
40Nm |
50Nm |
50Nm |
| Lifting Weight |
58.3 |
87.5 |
87.5 |
116.6 |
116.6 |
131 |
131 |
| Work time |
4min |
4min |
4min |
4min |
4min |
4min |
4min |
| Noise |
<58 |
<58 |
<58 |
<58 |
<58 |
<58 |
<58 |
| Insulationlevel |
B |
B |
B |
B |
B |
B |
B |
| Protection |
IP44 |
IP44 |
IP44 |
IP44 |
IP44 |
IP44 |
IP44 |
| TubeDiameter |
45mm |
45mm |
45mm |
45mm |
45mm |
45mm |
45mm |
| Voltage |
1.8KV/1S |
1.8KV/1S |
1.8KV/1S |
1.8KV/1S |
1.8KV/1S |
1.8KV/1S |
1.8KV/1S |
|
| Apply range |
|
This type of motor can be used in curtain, metal rolling door, and windows etc. Which the maximum lift capacity is less than 80kg.
|
|
Update:2008/2/2 11:52:05 |
|
|
