Control System : Receiver Series

,Description of products

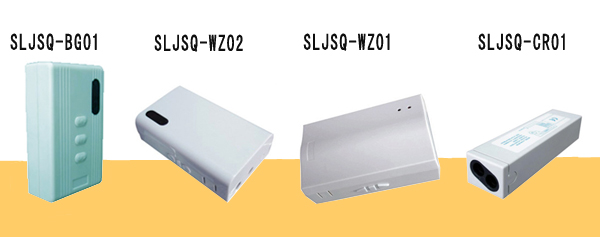

SLJSQ-BG01
Electric transformer,10A relay ,together with manual UP/STOP/DOWN function , connecting with the out-set switch too. Superheterodyne receiving chip,SMT automatic assembly, 1.6MM high quality glass-fiber PCB board.

SLJSQ-WZ02
Plastic sealed transformer . OMRON 10A relay ,together with manual UP/STOP/DOWN function, connecting with the out-set switch too.Superheterodyne receiving chip,SMT automatic assembly, 1.6MM high quality glass-fiber PCB board.

SLJSQ-WZ01
Electric transformer,10A relay ,together with manual UP/STOP/DOWN function , connecting with the out-set switch too. Superheterodyne receiving chip,SMT automatic assembly, 1.6MM high quality glass-fiber PCB board.

SLJSQ-CR01
Mini size,21MM thickness, installed into curtain rail, waterproof operation. Electronic transformer. 5A relay, Superheterodyne receiving chip. SMT automatic assembly,high quality glass-fiber PCB board.

 Product Mix

Working Voltage Load Power Working Temp Working Frequency Transmit Power Receiving Acuity Operation Mode

AC230V/50Hz

AC120V/60Hz

<=500W -30≧~+70≧ 315MHz/433.9MHz <=10mW -100dB Remote Manual

 Apply range
