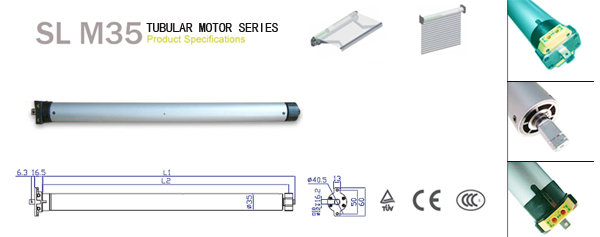

Tubular Motor Series : Tubular Motor (SL M35) |
|
|
|
|
，Description of products |
|
|
|
This type of motor is designed by international advanced technology, which has high techniques, stable and reliable performance. It is widely used on intermediate and small curtain, screen and awning which the load requirement is less than 25kg. |
| Product Mix |
|
|
Model SLM35 |
3 |
3 |
6 |
8 |
10 |
|
Voltage |
220/230v
50/60HZ |
220/230v
50/60HZ |
220/230v
50/60HZ |
220/230v
50/60HZ |
220/230v
50/60HZ |
|
Power ( w) |
135 |
155 |
135 |
155 |
180 |
|
Nominalspeed |
17pm |
32rpm |
17rpm |
17rpm |
17rpm |
|
Nomial torque |
3Nm |
3Nm |
6Nm |
8Nm |
10Nm |
|
Lifting Weight |
8.7 |
8.7 |
17.5 |
23.3 |
29.1 |
|
Work time |
4min |
4min |
4min |
4min |
4min |
|
Noise |
<45 |
<45 |
<45 |
<45 |
<45 |
|
Insulationlevel |
B |
B |
B |
B |
B |
|
Protection |
IP44 |
IP44 |
IP44 |
IP44 |
IP44 |
|
TubeDiameter |
35mm |
35mm |
35mm |
35mm |
35mm |
|
Voltage |
1.8KV/1S |
1.8KV/1S |
1.8KV/1S |
1.8KV/1S |
1.8KV/1S |
|
| Apply range |
|
It is widely used on intermediate and small curtain, screen and awning which the load requirement is less than 25kg.
|
|
Update:2008/2/2 11:53:30 |
|
|
